A control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.

Manufacturer Part Number: GS80100, 2001 2002 2003 2004 2005 2006,K620328, RK620328, 01 02 03 04 05 06,545002D000, 545002D001, 545002D002

Color: Black

Light Bulb Type:

AKKON

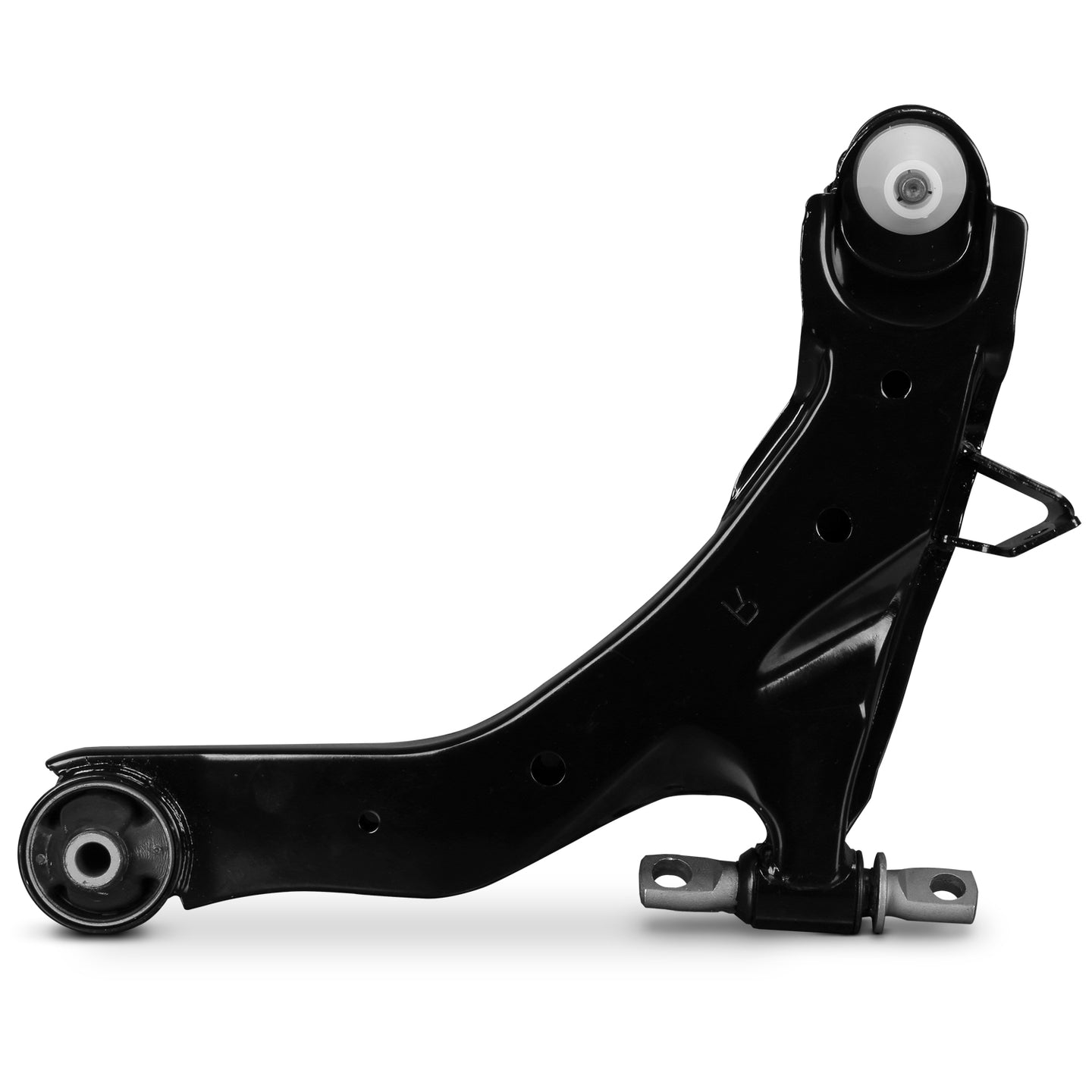

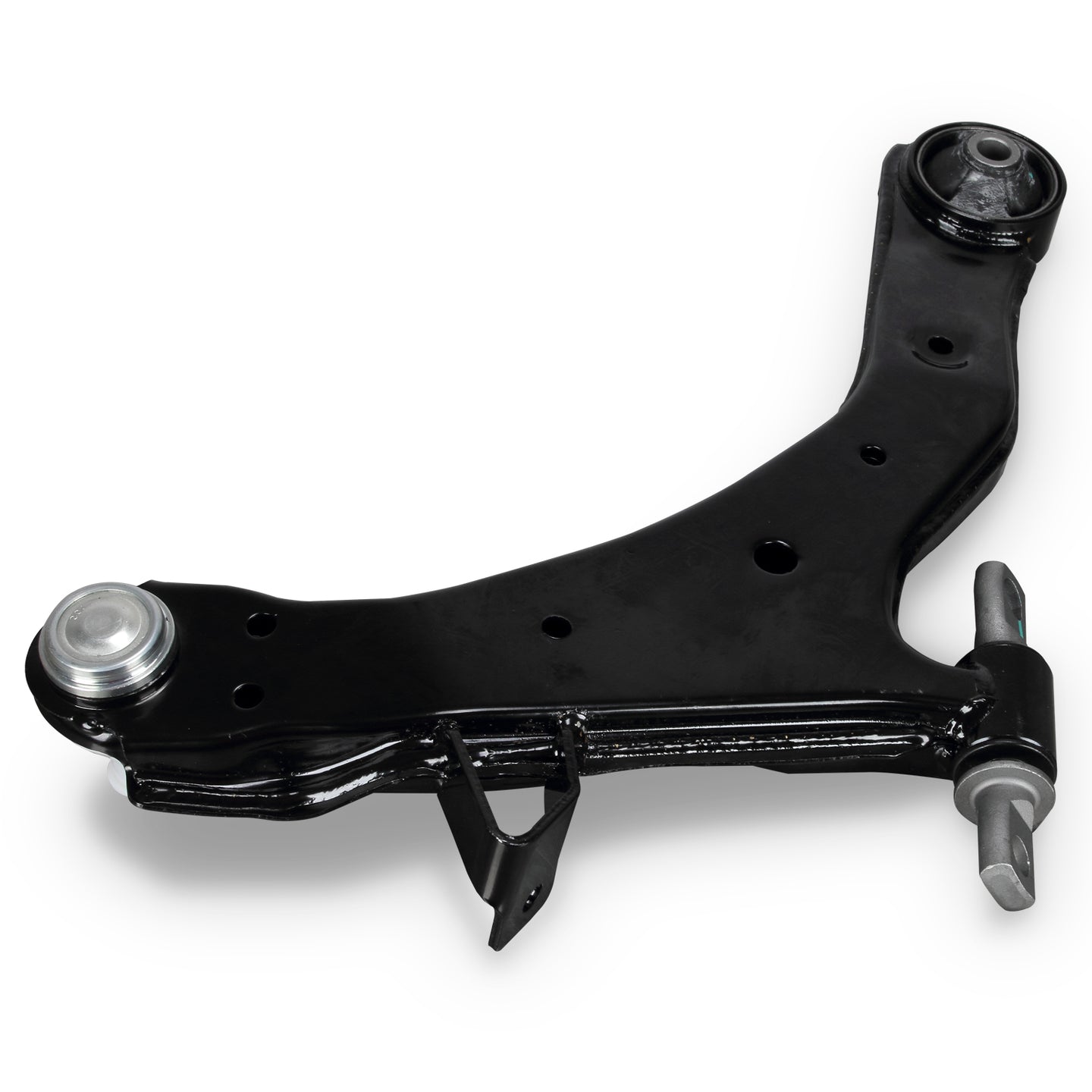

AKKON - For 2001-2006 Elantra Front Left Driver Side Suspension Lower Control Arm

SKU CALFHEL01D
$32.99
A control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.

Manufacturer Part Number: GS80100, 2001 2002 2003 2004 2005 2006,K620328, RK620328, 01 02 03 04 05 06,545002D000, 545002D001, 545002D002

Color: Black

Light Bulb Type:
$32.99
