A control arm, also known as an A-arm, is a hinged suspension link between the chassis and the suspension upright or hub that carries the wheel.
The inboard (chassis) end of a control arm is attached by a single pivot, usually a rubber bushing. It can thus control the position of the outboard end in only a single degree of freedom, maintaining the radial distance from the inboard mount. Although not deliberately free to move, the single bushing does not control the arm from moving back and forth; this motion is constrained by a separate link or radius rod.
This is in contrast to the wishbone. Wishbones are triangular and have two widely spaced inboard bearings. These constrain the outboard end of the wishbone from moving back and forth, controlling two degrees of freedom, and without requiring additional links.

Compatible With:

2005-2010 Chrysler 300 2WD Models ONLY

2008-2010 Dodge Challenger 2WD Models ONLY

2006 Dodge Charger All Models

2007-2010 Dodge Charger 2WD Models ONLY (2009: 6.1L / 5.7L / 3.5L ONLY) (2010: 5.7L / 3.5L ONLY)

2005-2008 Dodge Magnum 2WD Models ONLY

***For driver and passenger both side***

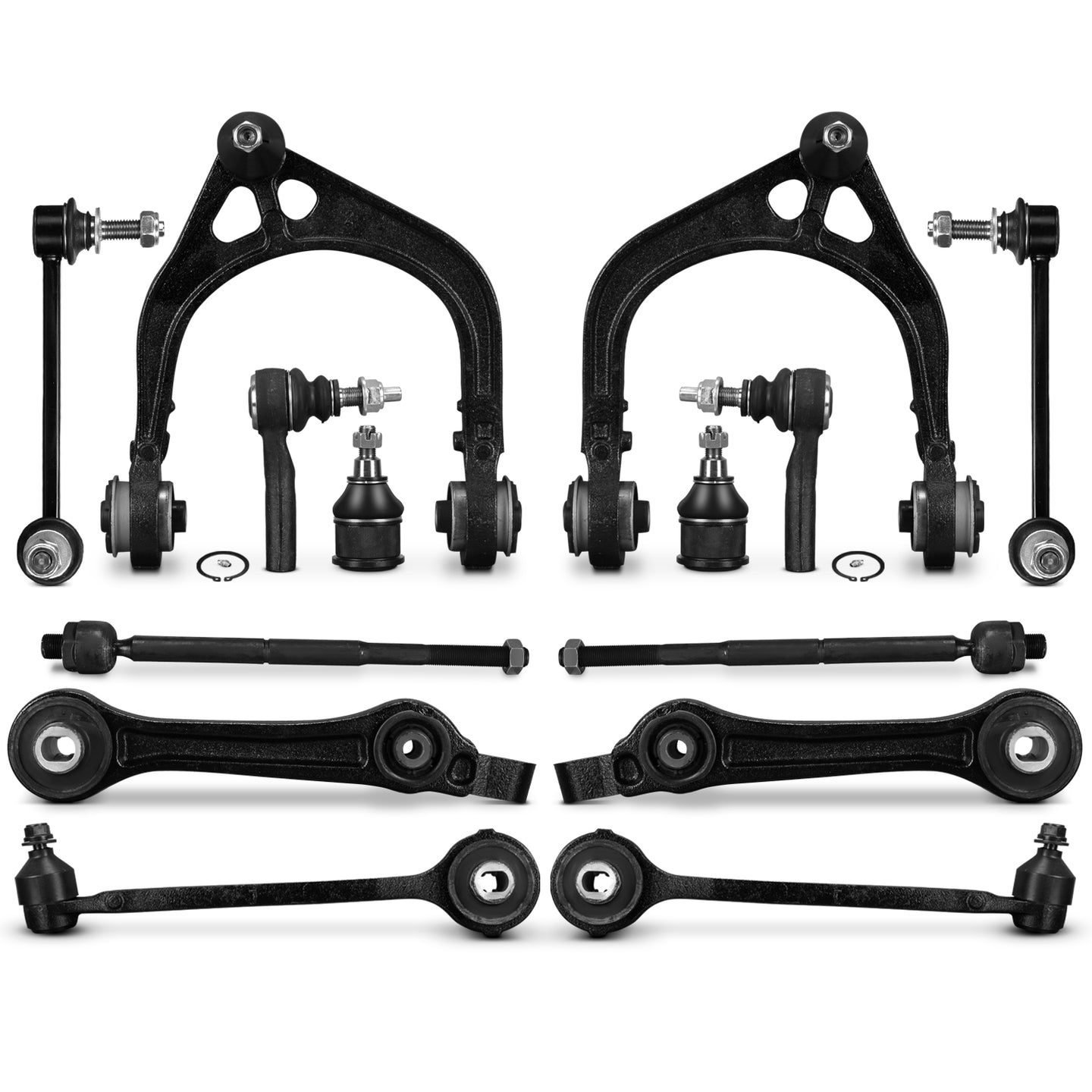

Package Include:

1x Front Upper Left Control Arm and Pre-Assembled Ball Joint - K620177

1x Front Upper Right Control Arm and Pre-Assembled Ball Joint - K620178

1x Front Lower Left Control Arm and Pre-Assembled Ball Joint (Forward Position) - K620258

1x Front Lower Right Control Arm and Pre-Assembled Ball Joint (Forward Position) - K620257

2x Front Lower Control Arms (Rearward Facing Position) - RK640664 (MS25119)

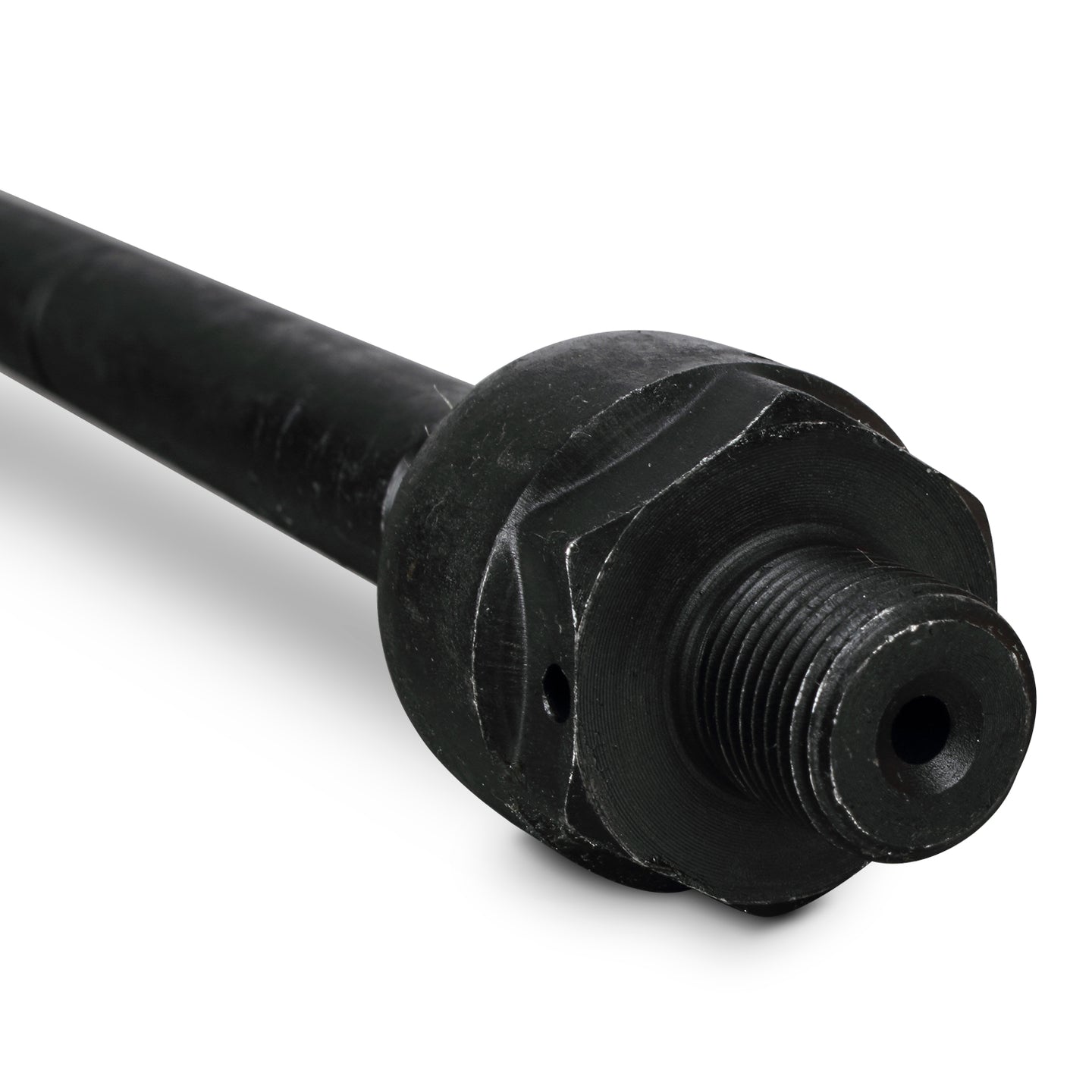

2x Front Inner Tie Rod End Link - EV80702

2x Front Outer Tie Rod End Link - ES3571

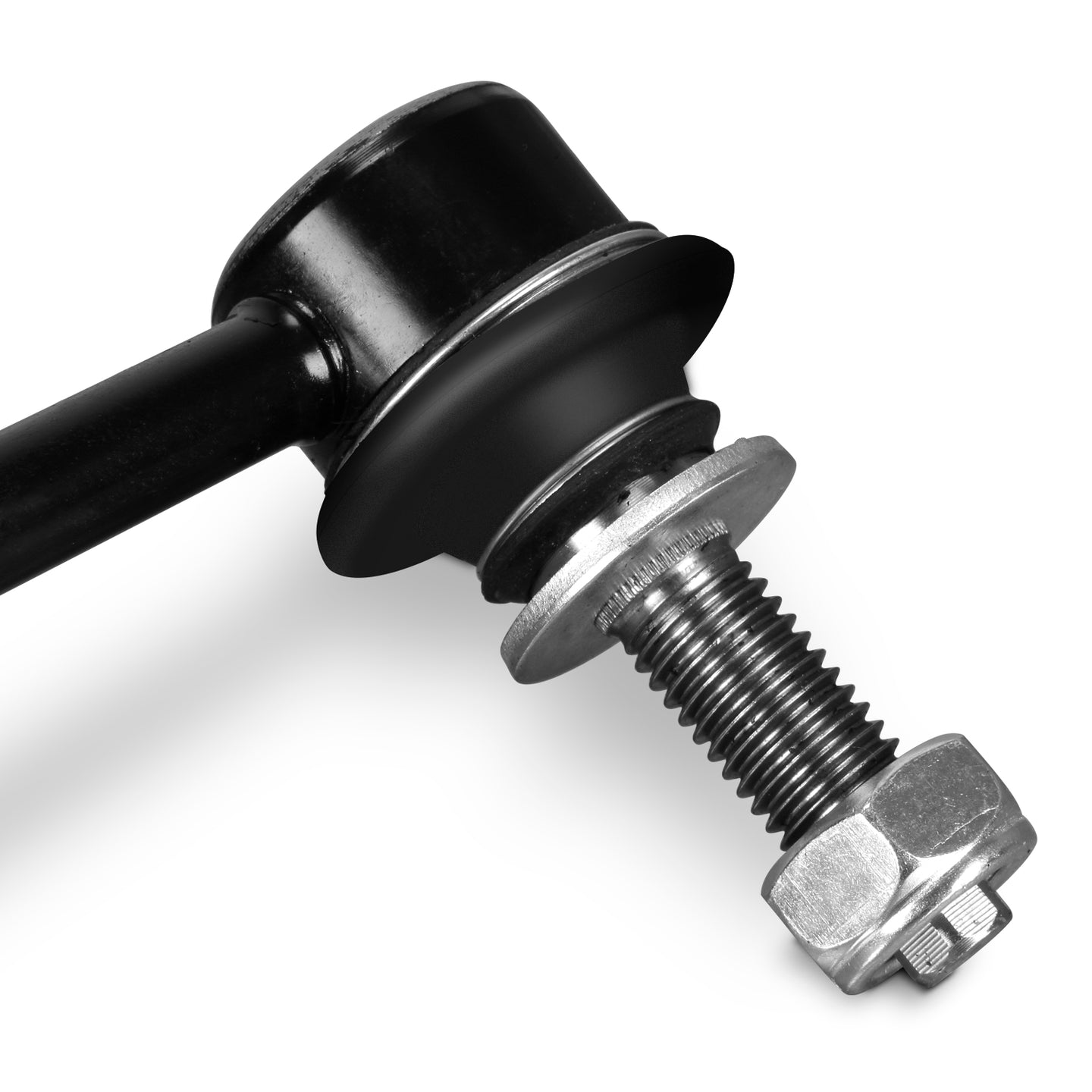

1x Front Left Sway Bar End Link - K80823

1x Front Right Sway Bar End Link - K80822

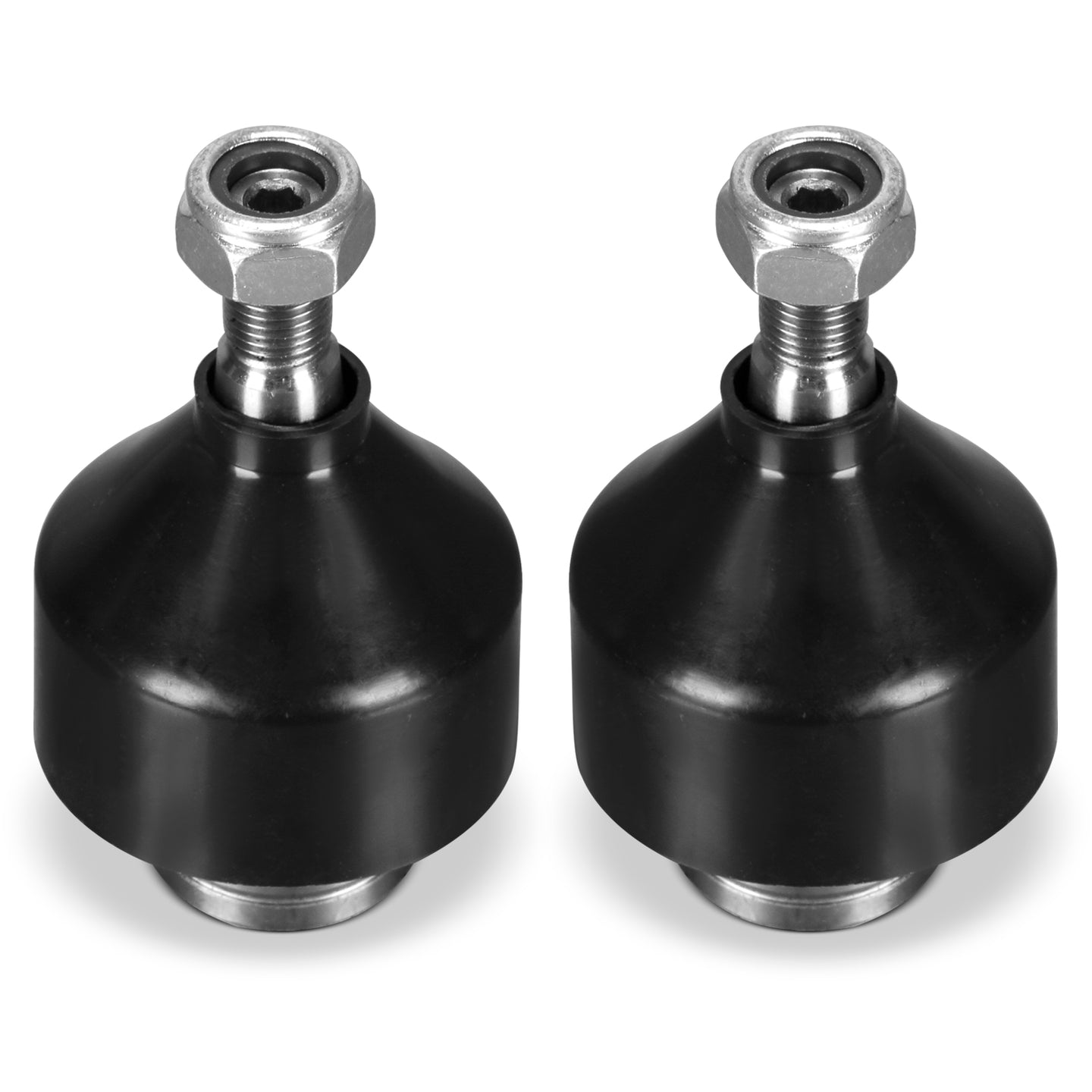

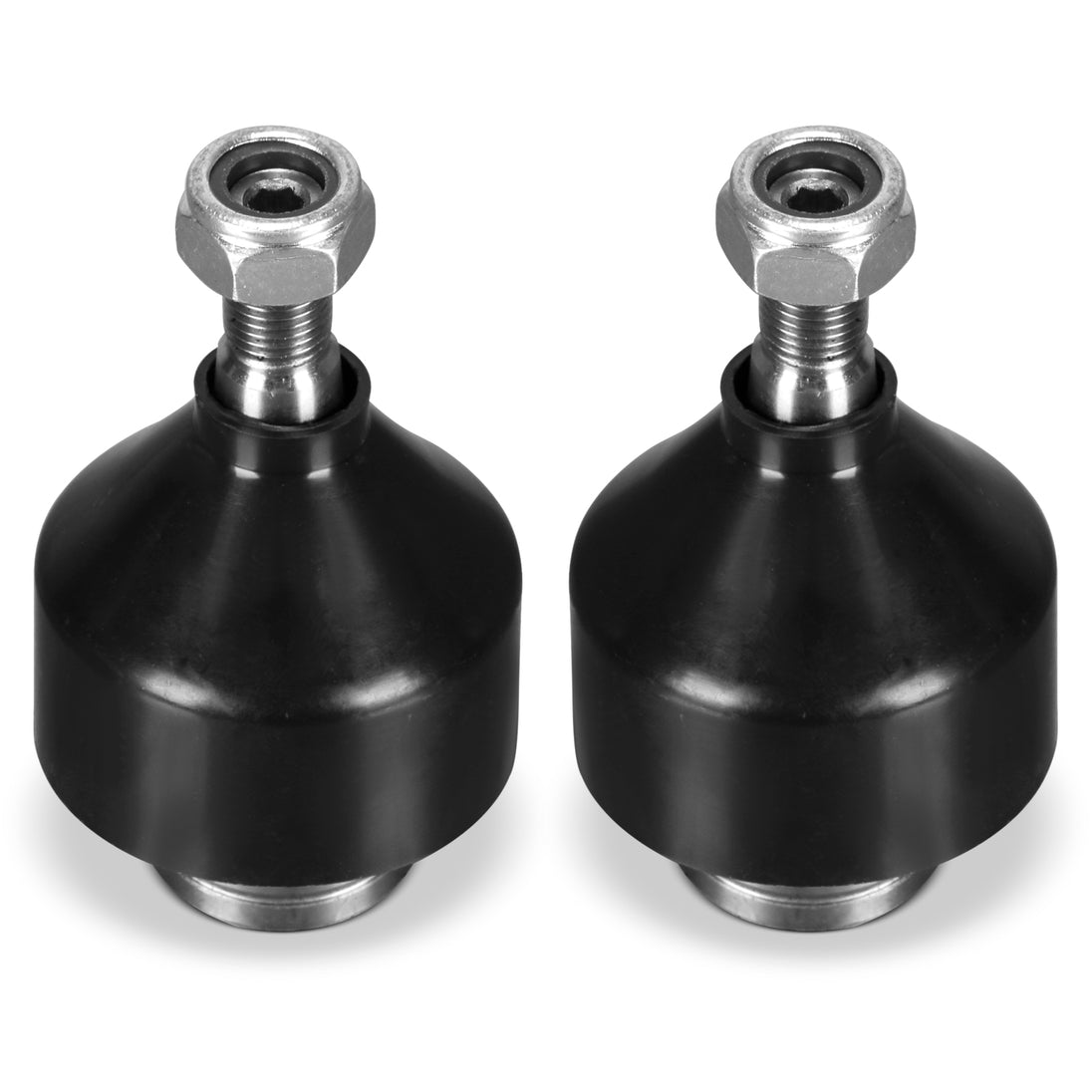

2x Front Lower Suspension Ball Joint - K7469 (K80996)

Manufacturer Part Number: K80823, K80822, 2008 2009 2010 05 06 07 08 09 10,K620177, K620178, K620258, K620257, 2005 2006 2007,RK640664, MS25119, EV80702, ES3571, K7469, K80996

Color: Black

Light Bulb Type:

AKKON

AKKON - For Chrysler 300 Dodge Challenger Charger Magnum 14pc Upper Lower Control Arm Sway Bar Tie Rod Suspension Ball Joint Kit

SKU FSKDCH0614P

Regular price: $159.99
